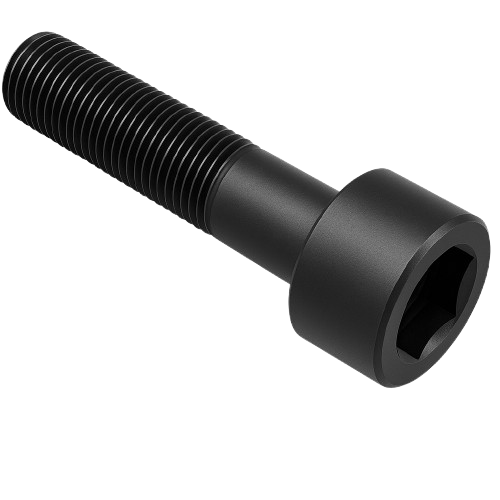

Socket Head Cap Screw Black Oxyde Alloy Steel 7/16-14 * 7" Grade 8 [Cup Point] [Allen Drive]

Socket Head Cap Screw Black Oxyde Alloy Steel 7/16-14 * 7" Grade 8 [Cup Point] [Allen Drive]

33.95 $ CAD
33.95 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



With a tensile strength of170, 000psi, these alloy steel screws are stronger than Grade 8 steelscrews. Length is measured from under the head.

Black-oxide steel screws are mildly corrosion resistant in dry environments.

Coarse threads are the industrystandard:choose these screws if you don’t know the pitch or threads per inch.

Screws that meet ASTMA574, ASTMA574M, and ISO898-1comply with specifications and testing requirements for materialquality.

View full details

Specifications
Product Number VPC-04070
Head Type Socket
Socket Head Profile Standard
Drive Style Hex
System of Measurement Inch
Thread Direction Right Hand
Thread Size 7/16"-14
Screw Size Decimal Equivalent 0.4375"
Thread Type UNC
Thread Fit Class 3A
Length 7"
Threading Partially Threaded
Min. Thread Length 1-3/8"
Thread Spacing Coarse

Head
Diameter 21/32"
Height 7/16"
Drive Size 3/8"
Material Black-Oxide Alloy Steel
Fastener Strength Grade/Class Grade 8
Tensile Strength 170,000 psi
Hardness Rockwell C37
Specifications Met ASTM A574
RoHS 3 (2015/863/EU) Compliant
