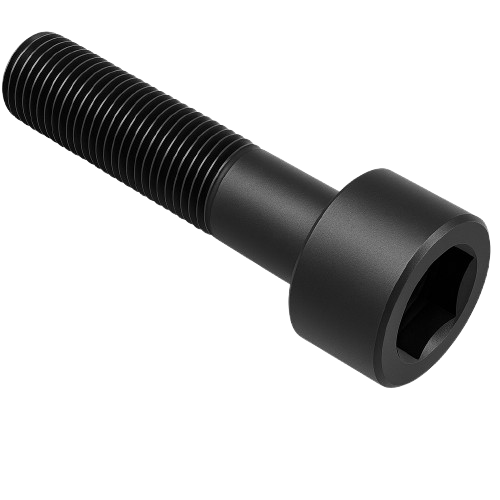

Socket Head Cap Screw Black Steel 3/4-10 * 18" Grade 8 [Cup Point] [Allen Drive]

Socket Head Cap Screw Black Steel 3/4-10 * 18" Grade 8 [Cup Point] [Allen Drive]

110.66 $ CAD
110.66 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download





With a tensile strength of 170,000 psi, these alloy steel screws are stronger than Grade 8 steel screws. Length is measured from under the head. The screws have a thread of 3/4-10 and a length of 18.



Black-oxide steel screws are mildly corrosion resistant in dry environments.Coarse threads are the industry standard: choose these screws if you don’t know the pitch or threads per inch.

Screws that meet ASTM A574, ASTM A574M, and ISO 898-1 comply with specifications and testing requirements for material quality.

View full details

Specifications
Product Number VPC-08180
Head Type Socket
Socket Head Profile Standard
Drive Style Hex
System of Measurement Inch
Thread Direction Right Hand
Thread Size 3/4"-10
Screw Size Decimal Equivalent 0.75"
Thread Type UNC
Thread Fit Class 3A
Length 18"
Threading Partially Threaded
Min. Thread Length 2"
Thread Spacing Coarse

Head
Diameter 1-1/8"
Height 3/4"
Drive Size 5/8"
Material Black-Oxide Alloy Steel
Fastener Strength Grade/Class Grade 8
Tensile Strength 170,000 psi
Hardness Rockwell C37
Specifications Met ASTM A574
RoHS 3 (2015/863/EU) Compliant
