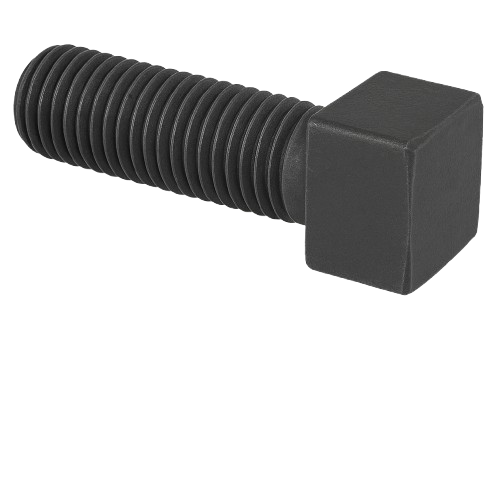

Square Head Screw Full Thread Black-Oxide Alloy Steel 3/8-16 * 1-1/2" Grade 8 [Cup Point] [External Square Drive]

Square Head Screw Full Thread Black-Oxide Alloy Steel 3/8-16 * 1-1/2" Grade 8 [Cup Point] [External Square Drive]

1.25 $ CAD
1.25 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


Use these set screws for light duty holding. A square head allows them to be turned by hand, or fastened with a wrench when you need more torque. The cup point has a thin edge that digs into the contact surface for a secure hold. Length is measured from under the head.

View full details

Specifications
Product Number VPCA-03015
Material Black-Oxide Alloy Steel
Thread Size 3/8"-16
Length 1-1/2"

Head
Width 3/8"
Height 19/64"
Screw Size Decimal Equivalent 0.375"
Hardness Rockwell B80
Specifications Met ASME B18.6.2
Thread Type UNC
Thread Spacing Coarse
Thread Fit Class 2A
Thread Direction Right Hand
Drive Style External Square
Tip Type Cup
Head Type Square
System of Measurement Inch
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
