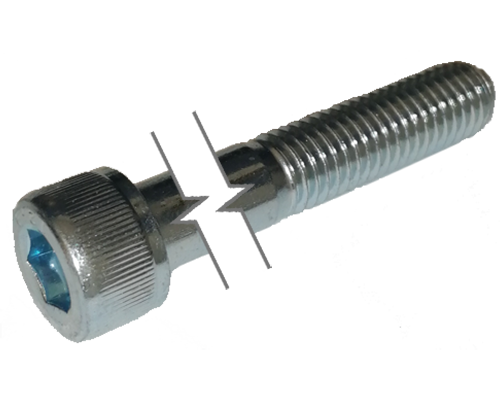

Metric Socket Head Cap Screw Zinc Plated Partial Thread M5 * 0.8 * 60mm Grade 8.8 [Allen Key]

Metric Socket Head Cap Screw Zinc Plated Partial Thread M5 * 0.8 * 60mm Grade 8.8 [Allen Key]

1.43 $ CAD
1.43 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



This socket head cap screw has a length of 60mm with a threading of M5 * 0.8mm [Partially Threaded]. It is made of Zinc Plated and thus provides a mild resistance to corrosion in dry environments.

The cup point and the Grade 8.8 increases its strength against the pressure and has a tensile strength and hardness of 110,000 psi | Rockwell C21. Furthermore, it features a shear strenght of 66,000 psi.

ISO Metric Pitch | Coarse threads are an industry standard. These screws are classified as DIN 912 and comply with dimensional standards.

View full details

Specifications
Product Number VPCM88-05060-Z
Nominal Diameter M5 * 0.8mm
Length 60mm
Material and/or Plating Zinc Plated
System of Measurement Metric

Thread Specifications
Threading Partially Threaded
Type ISO Metric Pitch | Coarse
Direction Right Hand
Size M5 * 0.8mm
Min. Length 22mm
Fit Class 5g6g

Head Specifications
Type Socket
Profile Standard
Diameter 8.50mm
Height 5.00mm
Drive Style Allen Key
Drive Size 4.00mm

Strength Specifications
Strength Grade/Class Grade 8.8
Tensile Strength | Hardness 110,000 psi | Rockwell C21
Shear Strength 66,000 psi
Classification DIN 912
