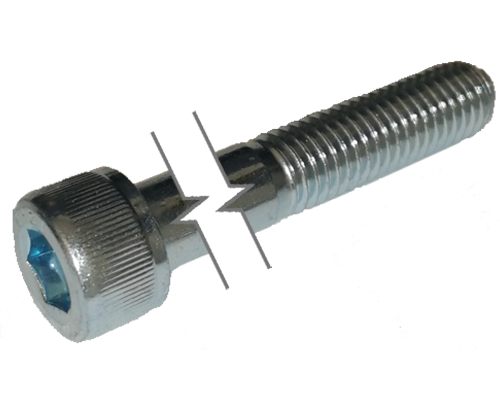

Metric Socket Head Cap Screw Zinc Plated Partial Thread M6 * 1 * 90mm Grade 8.8 [Allen Key]

Metric Socket Head Cap Screw Zinc Plated Partial Thread M6 * 1 * 90mm Grade 8.8 [Allen Key]

3.90 $ CAD
3.90 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

This socket head cap screw has a length of 90mm with a threading of M6 * 1mm [Partially Threaded]. It is made of Zinc Plated and thus provides a mild resistance to corrosion in dry environments.

The cup point and the Grade 8.8 increases its strength against the pressure and has a tensile strength and hardness of 110,000 psi | Rockwell C21. Furthermore, it features a shear strenght of 66,000 psi.

ISO Metric Pitch | Coarse threads are an industry standard. These screws are classified as DIN 912 and comply with dimensional standards.

View full details

Specifications
Product Number VPCM88-06090-Z
Nominal Diameter M6 * 1mm
Length 90mm
Material and/or Plating Zinc Plated
System of Measurement Metric

Thread Specifications
Threading Partially Threaded
Type ISO Metric Pitch | Coarse
Direction Right Hand
Size M6 * 1mm
Min. Length 24mm
Fit Class 5g6g

Head Specifications
Type Socket
Profile Standard
Diameter 10.00mm
Height 6.00mm
Drive Style Allen Key
Drive Size 5.00mm

Strength Specifications
Strength Grade/Class Grade 8.8
Tensile Strength | Hardness 110,000 psi | Rockwell C21
Shear Strength 66,000 psi
Classification DIN 912
