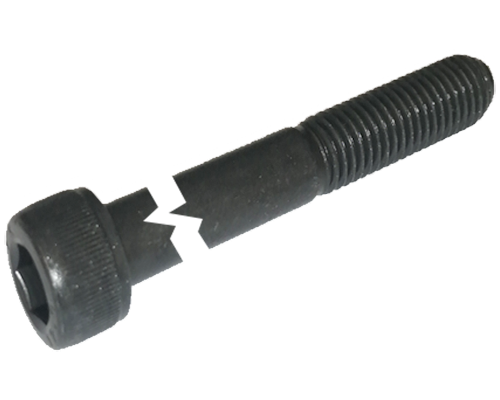

Metric Socket Head Cap Screw Black-Oxide Alloy Steel Partial Thread Fine Thread M24 * 2 * 90mm Grade 12.9 [Allen Key]

Metric Socket Head Cap Screw Black-Oxide Alloy Steel Partial Thread Fine Thread M24 * 2 * 90mm Grade 12.9 [Allen Key]

73.47 $ CAD
73.47 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

This socket head cap screw has a length of 90mm with a threading of Fine Thread M24 * 2mm [Partially Threaded]. It is made of Black-Oxide Alloy Steel and thus provides a mild resistance to corrosion in dry environments.

The cup point and the Grade 12.9 increases its strength against the pressure and has a tensile strength and hardness of 170,000 psi | Rockwell C39. Furthermore, it features a shear strenght of 102,000 psi.

ISO Metric Pitch | Fine threads are an industry standard. These screws are classified as DIN 912 and comply with dimensional standards.

View full details

Specifications
Product Number VPCMF-24090
Nominal Diameter Fine Thread M24 * 2mm
Length 90mm
Material and/or Plating Black-Oxide Alloy Steel
System of Measurement Metric

Thread Specifications
Threading Partially Threaded
Type ISO Metric Pitch | Fine
Direction Right Hand
Size Fine Thread M24 * 2mm
Min. Length 60mm
Fit Class 5g6g

Head Specifications
Type Socket
Profile Standard
Diameter 36.00mm
Height 24.00mm
Drive Style Allen Key
Drive Size 19.00mm

Strength Specifications
Strength Grade/Class Grade 12.9
Tensile Strength | Hardness 170,000 psi | Rockwell C39
Shear Strength 102,000 psi
Classification DIN 912
