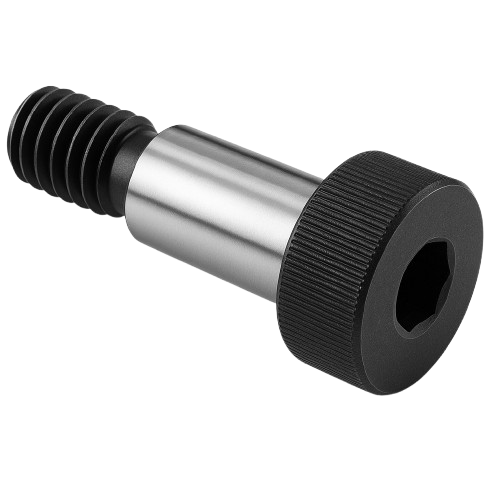

Shoulder Screw Black Steel 3/4-10 * 5-1/2" Grade 8 [Cup Point] [Allen Drive]

Shoulder Screw Black Steel 3/4-10 * 5-1/2" Grade 8 [Cup Point] [Allen Drive]

112.65 $ CAD
112.65 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


Comparable to Grade 8 steel, these alloy steel shoulder screws are the strongest we offer. They have a standard shoulder with an undersized tolerance to fit most machinery and equipment. Also known as stripper bolts, they're commonly used in punch and die assemblies, and as an axle or pivot point.

View full details

Specifications
Product Number VPCSH-08055
Shoulder Fit Standard
Shoulder Diameter 1"
Shoulder Diameter Tolerance -0.004" to -0.002"
Length 5-1/2"
Shoulder Length Tolerance -0.005" to 0.005"
Thread Size 3/4"-10
Screw Size Decimal Equivalent 0.750"
Thread Type UNC
Thread Spacing Coarse
Thread Fit Class 3A
Thread Direction Right Hand
Thread Length 1"
Head Diameter 1 5/16"
Head Height 5/8"
Material Alloy Steel
Finish Black Oxide
Hardness Rockwell C32
Tensile Strength 140,000 psi
Minimum Shear Strength 84,000 psi
Head Type Socket
Socket Head Profile Standard
Head Texture Knurled
Drive Style Hex
Drive Size 1/2"
Specifications Met ASME B18.3, ASTM A574
System of Measurement Inch
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
