Specifications

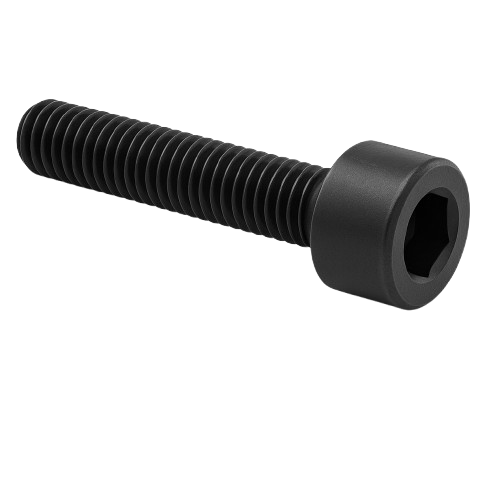

Product Number | VPCT-00205 |
Head Type | Socket |
Socket Head Profile | Standard |
Drive Style | Hex |
System of Measurement | Inch |
Thread Direction | Right Hand |
Thread Size | 2-56 |
Screw Size Decimal Equivalent | 0.086" |
Thread Type | UNC |
Thread Fit | Class 3A |
Length | 1/2" |
Threading | Fully Threaded |
Thread Spacing | Coarse |
Head |
|
Diameter | 9/64" |
Height | 0.086" |
Drive Size | 5/64" |
Material | Black-Oxide Alloy Steel |
Fastener Strength Grade/Class | Grade 8 |
Tensile Strength | 170,000 psi |
Hardness | Rockwell C37 |
Specifications Met | ASTM A574 |
REACH | REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant |
RoHS | RoHS 3 (2015/863/EU) Compliant |
