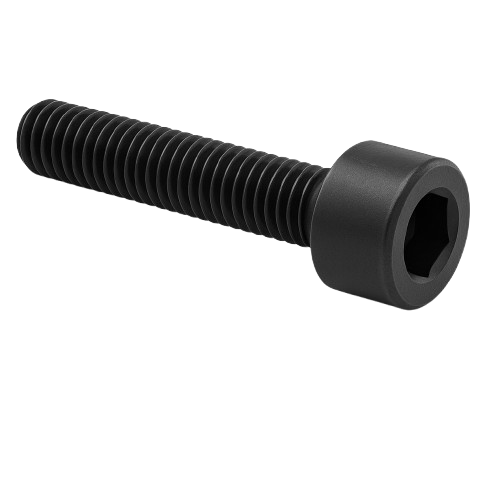

Socket Head Cap Screw Full Thread Black Steel 8-32 * 3/8" Grade 8 [Cup Point] [Allen Drive]

Socket Head Cap Screw Full Thread Black Steel 8-32 * 3/8" Grade 8 [Cup Point] [Allen Drive]

0.31 $ CAD
0.26 $ CAD 0.31 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


With a tensile strength of 170,000 psi, these alloy steel screws are stronger than Grade 8 steel screws. Length is measured from under the head.

Black-oxide steel screws are mildly corrosion resistant in dry environments.

Coarse threads are the industry standard: choose these screws if you don’t know the pitch or threads per inch.

Screws that meet ASTM A574, ASTM A574M, and ISO 898-1 comply with specifications and testing requirements for material quality.

View full details

Specifications
Product Number VPCT-00703
Head Type Socket
Socket Head Profile Standard
Drive Style Hex
System of Measurement Inch
Thread Direction Right Hand
Thread Size 8-32
Screw Size Decimal Equivalent 0.164"
Thread Type UNC
Thread Fit Class 2A
Length 3/8"
Threading Fully Threaded
Thread Spacing Coarse

Head
Diameter 0.27"
Height 0.164"
Drive Size 9/64"
Material Black-Oxide Alloy Steel
Fastener Strength Grade/Class Grade 8
Tensile Strength 170,000 psi
Hardness Rockwell C37
Specifications Met ASTM A574
RoHS 3 (2015/863/EU) Compliant
