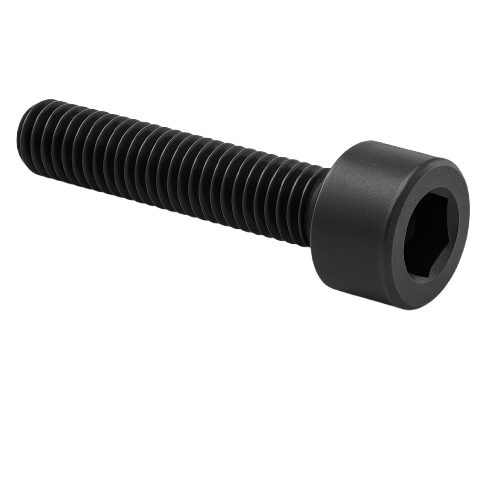

Socket Head Cap Screw Full Thread Black Steel 3/8-16 * 3/4" Grade 8 [Cup Point] [Allen Drive]

Socket Head Cap Screw Full Thread Black Steel 3/8-16 * 3/4" Grade 8 [Cup Point] [Allen Drive]

0.96 $ CAD
0.82 $ CAD 0.96 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


With a tensile strength of 170,000 psi, these alloy steel screws are stronger than Grade 8 steel screws. Length is measured from under the head.

Black-oxide steel screws are mildly corrosion resistant in dry environments.

Coarse threads are the industry standard: choose these screws if you don’t know the pitch or threads per inch.

Screws that meet ASTM A574, ASTM A574M, and ISO 898-1 comply with specifications and testing requirements for material quality.

View full details

Specifications
Product Number VPCT-03007
Head Type Socket
Socket Head Profile Standard
Drive Style Hex
System of Measurement Inch
Thread Direction Right Hand
Thread Size 3/8"-16
Screw Size Decimal Equivalent 0.375"
Thread Type UNC
Thread Fit Class 3A
Length 3/4"
Threading Fully Threaded
Thread Spacing Coarse

Head
Diameter 9/16"
Height 3/8"
Drive Size 5/16"
Material Black-Oxide Alloy Steel
Fastener Strength Grade/Class Grade 8
Tensile Strength 170,000 psi
Hardness Rockwell C37
Specifications Met ASTM A574
RoHS 3 (2015/863/EU) Compliant
