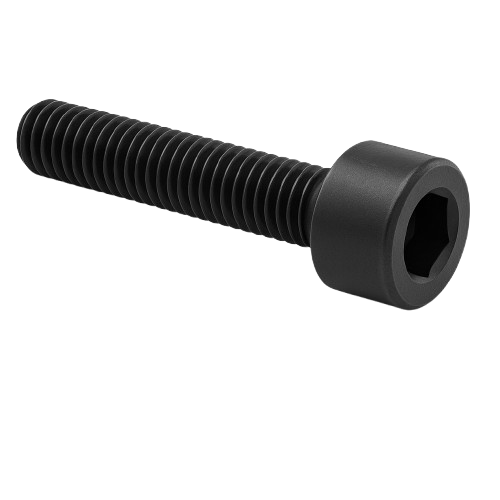

Socket Head Cap Screw Fine & Full Thread Black Steel 10-32 * 1-1/2" Grade 8 [Cup Point] [Allen Drive]

Socket Head Cap Screw Fine & Full Thread Black Steel 10-32 * 1-1/2" Grade 8 [Cup Point] [Allen Drive]

0.28 $ CAD
0.28 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


With a tensile strength of 170,000 psi, these alloy steel screws are stronger than Grade 8 steel screws. Length is measured from under the head.

alloy steel screws are mildly corrosion resistant in dry environments. Fine and extra-fine threads are closely spaced to prevent loosening from vibration: the finer the thread, the better the resistance. They are not compatible with coarse threads.

View full details

Specifications
Product Number VPCTF-00815
Head Type Socket
Socket Head Profile Standard
Drive Style Hex
System of Measurement Inch
Thread Direction Right Hand
Thread Size 10-32
Screw Size Decimal Equivalent 0.19"
Thread Type UNF
Thread Fit Class 3A
Length 1-1/2"
Threading Fully Threaded
Min. Thread Length 7/8"
Thread Spacing Fine

Head
Diameter 5/16"
Height 0.19"
Drive Size 5/32"
Material Black-Oxide Alloy Steel
Fastener Strength Grade/Class Grade 8
Tensile Strength 170,000 psi
Hardness Rockwell C37
Specifications Met ASTM A574
RoHS Compliant
