Metric Flat Head Cap Screw Black-Oxide Alloy Steel Partial Thread M10 * 1.5 * 90mm Grade 12.9 [Allen Key]

Metric Flat Head Cap Screw Black-Oxide Alloy Steel Partial Thread M10 * 1.5 * 90mm Grade 12.9 [Allen Key]

3.89 $ CAD
3.89 $ CAD
Sale Sold out
Shipping calculated at checkout.
Title
Download

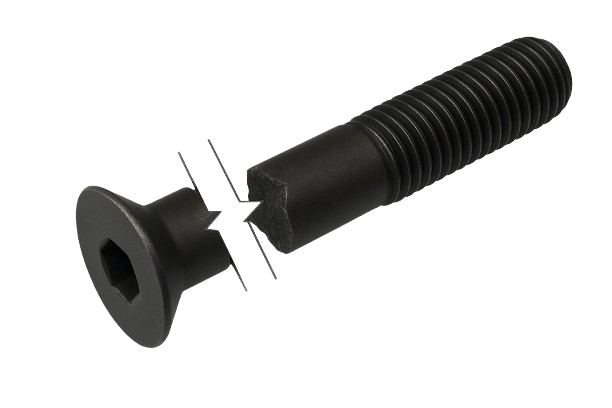

This flat head cap screw has a length of 90mm with a threading of M10 * 1.5mm [Partially Threaded]. It is made of Black-Oxide Alloy Steel and thus provides a mild resistance to corrosion in dry environments.

The cup point and the Grade 12.9 increases its strength against the pressure and has a tensile strength and hardness of 170,000 psi | Rockwell C39. Furthermore, it features a shear strenght of 102,000 psi.

ISO Metric Pitch | Coarse threads are an industry standard. These screws are classified as DIN 7991 and comply with dimensional standards.

View full details

Specifications
Product Number VPFM-10090
Nominal Diameter M10 * 1.5mm
Length 90mm
Material and/or Plating Black-Oxide Alloy Steel
System of Measurement Metric

Thread Specifications
Threading Partially Threaded
Type ISO Metric Pitch | Coarse
Direction Right Hand
Size M10 * 1.5mm
Min. Length 32mm
Fit Class 5g6g

Head Specifications
Type Flat
Profile Standard
Diameter 20.00mm
Height 5.50mm
Drive Style Allen Key
Drive Size 6.00mm

Strength Specifications
Strength Grade/Class Grade 12.9
Tensile Strength | Hardness 170,000 psi | Rockwell C39
Shear Strength 102,000 psi
Classification DIN 7991
