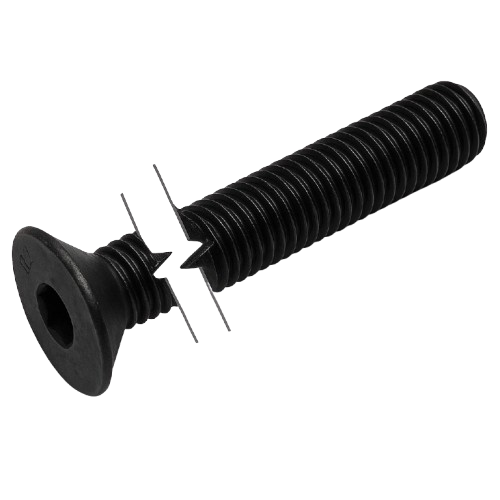

Metric Flat Head Cap Screw Black-Oxide Alloy Steel Full Thread M3 * 0.5 * 40mm Grade 12.9 [Allen Key]

Metric Flat Head Cap Screw Black-Oxide Alloy Steel Full Thread M3 * 0.5 * 40mm Grade 12.9 [Allen Key]

0.90 $ CAD
0.90 $ CAD
Sale Sold out
Shipping calculated at checkout.
Title
Download

This flat head cap screw has a length of 40mm with a threading of M3 * 0.5mm [Fully Threaded]. It is made of Black-Oxide Alloy Steel and thus provides a mild resistance to corrosion in dry environments.

The cup point and the Grade 12.9 increases its strength against the pressure and has a tensile strength and hardness of 170,000 psi | Rockwell C39. Furthermore, it features a shear strenght of 102,000 psi.

ISO Metric Pitch | Coarse threads are an industry standard. These screws are classified as DIN 7991 and comply with dimensional standards.

View full details

Specifications
Product Number VPFMT-03040
Nominal Diameter M3 * 0.5mm
Length 40mm
Material and/or Plating Black-Oxide Alloy Steel
System of Measurement Metric

Thread Specifications
Threading Fully Threaded
Type ISO Metric Pitch | Coarse
Direction Right Hand
Size M3 * 0.5mm
Fit Class 5g6g

Head Specifications
Type Flat
Profile Standard
Diameter 6.00mm
Height 1.70mm
Drive Style Allen Key
Drive Size 2.00mm

Strength Specifications
Strength Grade/Class Grade 12.9
Tensile Strength | Hardness 170,000 psi | Rockwell C39
Shear Strength 102,000 psi
Classification DIN 7991
