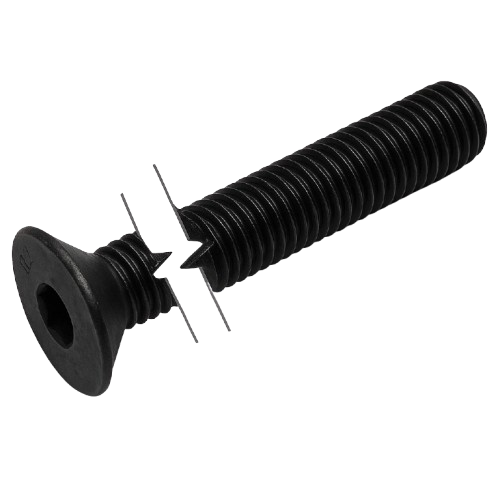

    Metric Flat Head Cap Screw Black-Oxide Alloy Steel Full Thread M4 * 0.7 * 40mm Grade 12.9 [Allen Key]

    Metric Flat Head Cap Screw Black-Oxide Alloy Steel Full Thread M4 * 0.7 * 40mm Grade 12.9 [Allen Key]

    0.44 $ CAD
    0.44 $ CAD
    Sale Sold out
    Shipping calculated at checkout.
    Title
    Download

    This flat head cap screw has a length of 40mm with a threading of M4 * 0.7mm [Fully Threaded]. It is made of Black-Oxide Alloy Steel and thus provides a mild resistance to corrosion in dry environments.

    The cup point and the Grade 12.9 increases its strength against the pressure and has a tensile strength and hardness of 170,000 psi | Rockwell C39. Furthermore, it features a shear strenght of 102,000 psi.

    ISO Metric Pitch | Coarse threads are an industry standard. These screws are classified as DIN 7991 and comply with dimensional standards.

    View full details

    Specifications
    Product Number VPFMT-04040
    Nominal Diameter M4 * 0.7mm
    Length 40mm
    Material and/or Plating Black-Oxide Alloy Steel
    System of Measurement Metric

    Thread Specifications
    Threading Fully Threaded
    Type ISO Metric Pitch | Coarse
    Direction Right Hand
    Size M4 * 0.7mm
    Fit Class 5g6g

    Head Specifications
    Type Flat
    Profile Standard
    Diameter 8.00mm
    Height 2.30mm
    Drive Style Allen Key
    Drive Size 2.50mm

    Strength Specifications
    Strength Grade/Class Grade 12.9
    Tensile Strength | Hardness 170,000 psi | Rockwell C39
    Shear Strength 102,000 psi
    Classification DIN 7991
