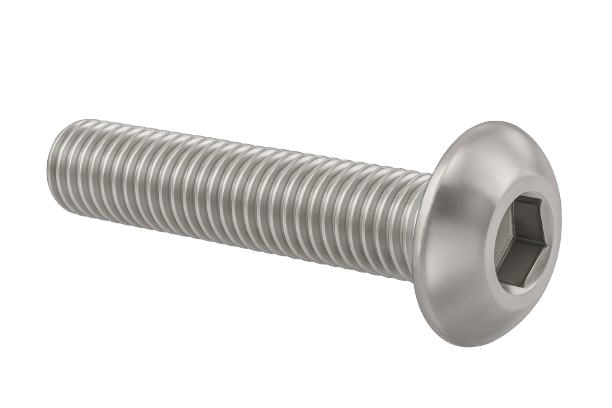

Metric Button Head Cap Screw A2 Stainless Steel [Equivalent 304 SS] Full Thread M6 * 1 * 50mm [Allen Key]

Metric Button Head Cap Screw A2 Stainless Steel [Equivalent 304 SS] Full Thread M6 * 1 * 50mm [Allen Key]

Regular price 0.89 $ CAD
Regular price Sale price 0.89 $ CAD
Sale Sold out
Shipping calculated at checkout.
Title
Download

This button head cap screw has a length of 50mm with a threading of M6 * 1mm [Fully Threaded]. It is made of A2 Stainless Steel [Equivalent 304 SS] and thus provides a high resistance to corrosion in dry and wet environments.

The cup point and the A2 Stainless Steel [Equivalent 304 SS] increases its strength against the pressure and has a tensile strength and hardness of 70,000 psi | Rockwell B70. Furthermore, it features a shear strenght of 42,000 psi.

ISO Metric Pitch | Coarse threads are an industry standard. These screws are classified as DIN 7380 and comply with dimensional standards.

View full details

Specifications

Product Number VPSBM-06050
Nominal Diameter M6 * 1mm
Length 50mm
Material and/or Plating A2 Stainless Steel [Equivalent 304 SS]
System of Measurement Metric

Thread Specifications

Threading Fully Threaded
Type ISO Metric Pitch | Coarse
Direction Right Hand
Size M6 * 1mm
Fit Class 5g6g

Head Specifications

Type Button
Profile Standard
Diameter 13.60mm
Height 3.30mm
Drive Style Allen Key
Drive Size 4.00mm

Strength Specifications

Tensile Strength | Hardness 70,000 psi | Rockwell B70
Shear Strength 42,000 psi
Classification DIN 7380
