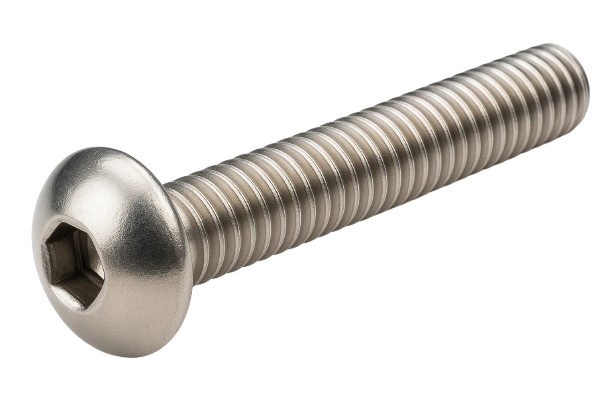

Metric Button Head Cap Screw A4 Stainless Steel [Equivalent 316 SS] Full Thread M4 * 0.7 * 12mm [Allen Key]

Metric Button Head Cap Screw A4 Stainless Steel [Equivalent 316 SS] Full Thread M4 * 0.7 * 12mm [Allen Key]

0.20 $ CAD
0.20 $ CAD
Sale Sold out
Shipping calculated at checkout.
Title
Download

This button head cap screw has a length of 12mm with a threading of M4 * 0.7mm [Fully Threaded]. It is made of A4 Stainless Steel [Equivalent 316 SS] and thus provides a very high resistance to corrosion in dry and wet environments.

The cup point and the A4 Stainless Steel [Equivalent 316 SS] increases its strength against the pressure and has a tensile strength and hardness of 75,000 psi | Rockwell B79. Furthermore, it features a shear strenght of 45,000 psi.

ISO Metric Pitch | Coarse threads are an industry standard. These screws are classified as DIN 7380 and comply with dimensional standards.

View full details

Specifications
Product Number VPSBM3-04012
Nominal Diameter M4 * 0.7mm
Length 12mm
Material and/or Plating A4 Stainless Steel [Equivalent 316 SS]
System of Measurement Metric

Thread Specifications
Threading Fully Threaded
Type ISO Metric Pitch | Coarse
Direction Right Hand
Size M4 * 0.7mm
Fit Class 5g6g

Head Specifications
Type Button
Profile Standard
Diameter 9.40mm
Height 2.20mm
Drive Style Allen Key
Drive Size 2.50mm

Strength Specifications
Tensile Strength | Hardness 75,000 psi | Rockwell B79
Shear Strength 45,000 psi
Classification DIN 7380
