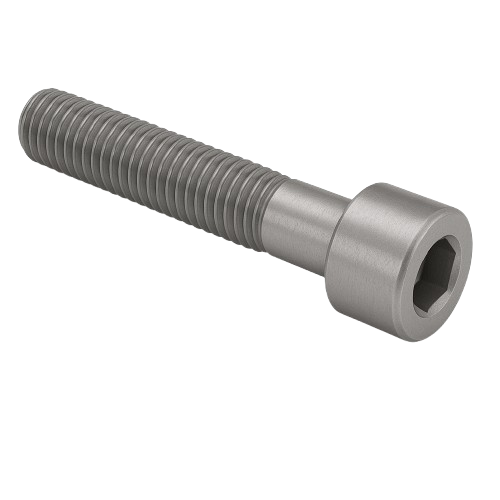

Socket Head Cap Screw Stainless Steel 2-56 * 1-7/16" [Cup Point] [Allen Drive]

Socket Head Cap Screw Stainless Steel 2-56 * 1-7/16" [Cup Point] [Allen Drive]

1.24 $ CAD
1.24 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


Made from 18-8 stainless steel, these screws have good chemical resistance and may be mildly magnetic. Length is measured from under the head.

Coarse threads are the industry standard: choose these screws if you don’t know the pitch or threads per inch.

View full details

Specifications
Product Number VPSC-00213A
Head Type Socket
Socket Head Profile Standard
Drive Style Hex
System of Measurement Inch
Thread Direction Right Hand
Thread Size 2-56
Screw Size Decimal Equivalent 0.086"
Thread Type UNC
Thread Fit Class 3A
Length 1-7/16"
Threading Partially Threaded
Min. Thread Length 5/8"
Thread Spacing Coarse

Head
Diameter 9/64"
Height 0.086"
Drive Size 5/64"
Tensile Strength 70,000 psi
Hardness Rockwell B70
Material 18-8 Stainless Steel
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
