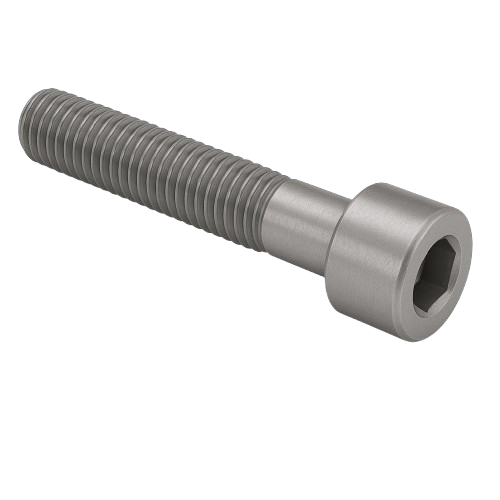

Socket Head Cap Screw Stainless Steel 5/16-18 * 1-3/4" [Cup Point] [Allen Drive]

Socket Head Cap Screw Stainless Steel 5/16-18 * 1-3/4" [Cup Point] [Allen Drive]

1.32 $ CAD
1.32 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


Made from 304 stainless steel, these screws have good chemical resistance and may be mildly magnetic. Length is measured from under the head.

Coarse threads are the industry standard:choose these screws if you don’t know the pitch or threads per inch.


View full details

Specifications
Product Number VPSC-02017
Head Type Socket
Socket Head Profile Standard
Drive Style Hex
System of Measurement Inch
Thread Direction Right Hand
Thread Size 5/16"-18
Screw Size Decimal Equivalent 0.3125"
Thread Type UNC
Thread Fit Class 3A
Length 1-3/4"
Threading Partially Threaded
Min. Thread Length 1-1/8"
Thread Spacing Coarse

Head
Diameter 15/32"
Height 5/16"
Drive Size 1/4"
Tensile Strength 70,000 psi
Hardness Rockwell B70
Material 304 Stainless Steel
RoHS 3 (2015/863/EU) Compliant
