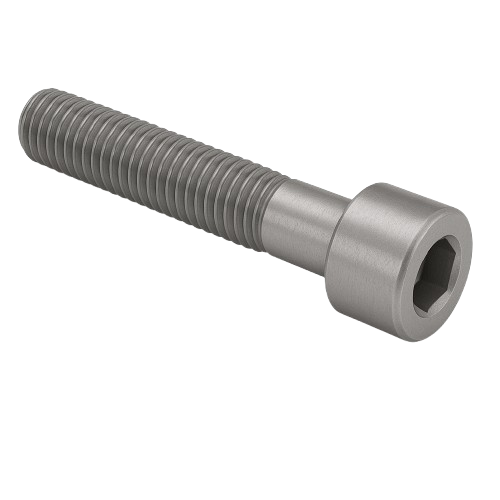

Socket Head Cap Screw Stainless Steel 3/4-10 * 3" [Cup Point] [Allen Drive]

Socket Head Cap Screw Stainless Steel 3/4-10 * 3" [Cup Point] [Allen Drive]

9.76 $ CAD
9.76 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


Made from 18-8 stainless steel, these screws have good chemical resistance and may be mildly magnetic. Length is measured from under the head.

Coarse threads are the industry standard: choose these screws if you don’t know the pitch or threads per inch.

View full details

Specifications
Product Number VPSC-08030
Head Type Socket
Socket Head Profile Standard
Drive Style Hex
System of Measurement Inch
Thread Direction Right Hand
Thread Size 3/4"-10
Screw Size Decimal Equivalent 0.75"
Thread Type UNC
Thread Fit Class 3A
Length 3"
Threading Partially Threaded
Min. Thread Length 2"
Thread Spacing Coarse

Head
Diameter 1 1/8"
Height 3/4"
Drive Size 5/8"
Material 18-8 Stainless Steel
Tensile Strength 70,000 psi
Hardness Rockwell B70
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
