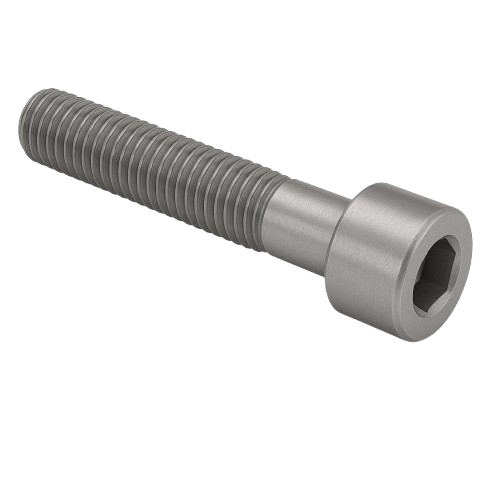

Socket Head Cap Screw Stainless Steel 7/8-9 * 4" [Cup Point] [Allen Drive]

Socket Head Cap Screw Stainless Steel 7/8-9 * 4" [Cup Point] [Allen Drive]

31.04 $ CAD
31.04 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


Made from 18-8 stainless steel, these screws have good chemical resistance and may be mildly magnetic. Length is measured from under the head.

Coarse threads are the industry standard: choose these screws if you don’t know the pitch or threads per inch.

View full details

Specifications
Product Number VPSC-09040
Head Type Socket
Socket Head Profile Standard
Drive Style Hex
System of Measurement Inch
Thread Direction Right Hand
Thread Size 7/8"-9
Screw Size Decimal Equivalent 0.875"
Thread Type UNC
Thread Fit Class 3A
Length 4"
Threading Partially Threaded
Min. Thread Length 2 1/4"
Thread Spacing Coarse

Head
Diameter 1 5/16"
Height 7/8"
Drive Size 3/4"
Material 18-8 Stainless Steel
Tensile Strength 70,000 psi
Hardness Rockwell B70
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
