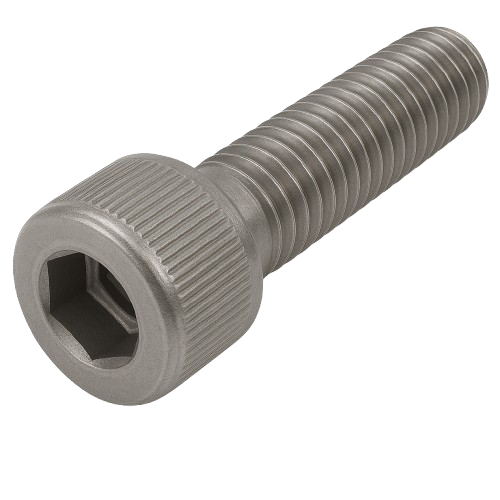

Metric Socket Head Cap Screw A2 Stainless Steel [Equivalent 304 SS] Full Thread M1.6 * 0.35 * 5mm [Allen Key]

Metric Socket Head Cap Screw A2 Stainless Steel [Equivalent 304 SS] Full Thread M1.6 * 0.35 * 5mm [Allen Key]

0.24 $ CAD
0.24 $ CAD
Sale Sold out
Shipping calculated at checkout.
Title
Download

This socket head cap screw has a length of 5mm with a threading of M1.6 * 0.35mm [Fully Threaded]. It is made of A2 Stainless Steel [Equivalent 304 SS] and thus provides a high resistance to corrosion in dry and wet environments.

The cup point and the A2 Stainless Steel [Equivalent 304 SS] increases its strength against the pressure and has a tensile strength and hardness of 70,000 psi | Rockwell B70. Furthermore, it features a shear strenght of 42,000 psi.

ISO Metric Pitch | Coarse threads are an industry standard. These screws are classified as DIN 912 and comply with dimensional standards.

View full details

Specifications
Product Number VPSCMT-01605
Nominal Diameter M1.6 * 0.35mm
Length 5mm
Material and/or Plating A2 Stainless Steel [Equivalent 304 SS]
System of Measurement Metric

Thread Specifications
Threading Fully Threaded
Type ISO Metric Pitch | Coarse
Direction Right Hand
Size M1.6 * 0.35mm
Fit Class 5g6g

Head Specifications
Type Socket
Profile Standard
Diameter 3.00mm
Height 1.60mm
Drive Style Allen Key
Drive Size 1.50mm

Strength Specifications

Strength Grade/Class
Tensile Strength | Hardness 70,000 psi | Rockwell B70
Shear Strength 42,000 psi
Classification DIN 912
