Specifications
| Product Number | VPSCMT-06085 |
| Nominal Diameter | M6 * 1mm |
| Length | 85mm |
| Material and/or Plating | A2 Stainless Steel [Equivalent 304 SS] |
| System of Measurement | Metric |
Thread Specifications |
|
| Threading | Fully Threaded |
| Type | ISO Metric Pitch | Coarse |
| Direction | Right Hand |
| Size | M6 * 1mm |
| Fit | Class 5g6g |
Head Specifications |
|
| Type | Socket |
| Profile | Standard |
| Diameter | 10.00mm |
| Height | 6.00mm |
| Drive Style | Allen Key |
| Drive Size | 5.00mm |
Strength Specifications |
|
Strength Grade/Class |
|
| Tensile Strength | Hardness | 70,000 psi | Rockwell B70 |
| Shear Strength | 42,000 psi |
| Classification | DIN 912 |

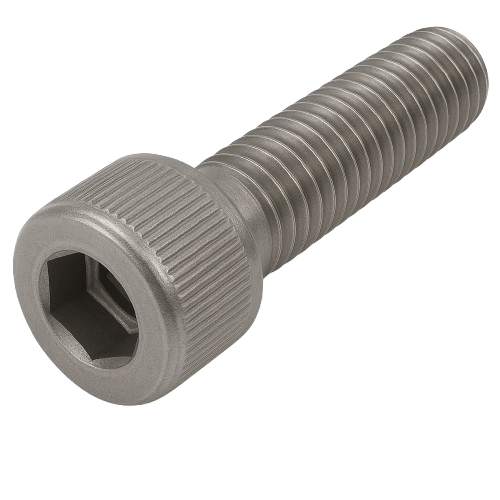

![Metric Socket Head Cap Screw A2 Stainless Steel [Equivalent 304 SS] Full Thread M6 * 1.0 * 85mm [Allen Key]](http://rjm-fasteners.com/cdn/shop/files/Image_Jun_4__2025__04_33_01_PM-removebg-preview_da94bcaf-6655-4695-ab0e-44585c614158.png?v=1749652134&width=1445)
