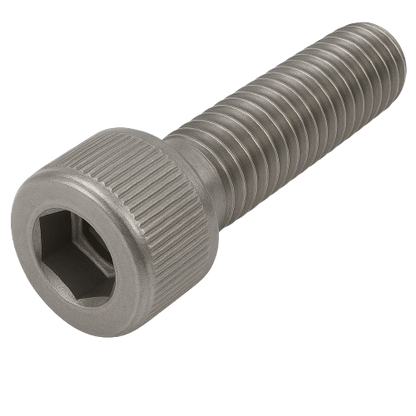

Metric Socket Head Cap Screw A4 Stainless Steel [Equivalent 316 SS] Full Thread M2.5 * 0.45 * 8mm [Allen Key]

Metric Socket Head Cap Screw A4 Stainless Steel [Equivalent 316 SS] Full Thread M2.5 * 0.45 * 8mm [Allen Key]

0.24 $ CAD
0.24 $ CAD
Sale Sold out
Shipping calculated at checkout.
Title
Download

This socket head cap screw has a length of 8mm with a threading of M2.5 * 0.45mm [Fully Threaded]. It is made of A4 Stainless Steel [Equivalent 316 SS] and thus provides a high resistance to corrosion in dry and wet environments.

The cup point and the A4 Stainless Steel [Equivalent 316 SS] increases its strength against the pressure and has a tensile strength and hardness of 75,000 psi | Rockwell B79. Furthermore, it features a shear strenght of 45,000 psi.

ISO Metric Pitch | Coarse threads are an industry standard. These screws are classified as DIN 912 and comply with dimensional standards.

View full details

Specifications
Product Number VPSCMT3-02508
Nominal Diameter M2.5 * 0.45mm
Length 8mm
Material and/or Plating A4 Stainless Steel [Equivalent 316 SS]
System of Measurement Metric

Thread Specifications
Threading Fully Threaded
Type ISO Metric Pitch | Coarse
Direction Right Hand
Size M2.5 * 0.45mm
Fit Class 5g6g

Head Specifications
Type Socket
Profile Standard
Diameter 4.50mm
Height 2.50mm
Drive Style Allen Key
Drive Size 2.00mm

Strength Specifications

Strength Grade/Class
Tensile Strength | Hardness 75,000 psi | Rockwell B79
Shear Strength 45,000 psi
Classification DIN 912
