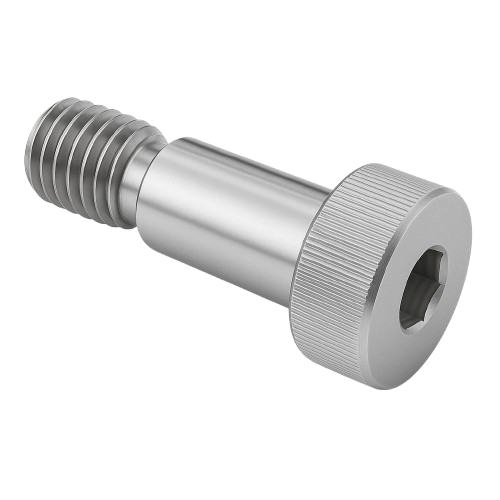

Shoulder Screw Stainless Steel 5/8-11 *2" [Cup Point] [Allen Drive]

Shoulder Screw Stainless Steel 5/8-11 *2" [Cup Point] [Allen Drive]

64.57 $ CAD
64.57 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Made from 18-8 stainless steel, these shoulder screws have good chemical resistance and may be mildly magnetic. A standard shoulder with an undersized tolerance allows them to fit most machinery and equipment. They’re often used to guide or align components, and as an axle or pivot point. The screw has a length of 2" and a thread of 5/8-11.

Passivated stainless steel screws have added protection against oxidation and corrosion.

View full details

Specifications
Shoulder Fit Standard
Shoulder Diameter 3/4"
Shoulder Diameter Tolerance -0.004" to -0.002"
Length 2"
Shoulder Length Tolerance -0.005" to 0.005"
Thread Size 5/8"-11
Screw Size Decimal Equivalent 0.625"
Thread Type UNC
Thread Spacing Coarse
Thread Fit Class 3A
Thread Direction Right Hand
Thread Length 7/8"
Head Diameter 1"
Head Height 1/2"
Material 18-8 Stainless Steel
Finish Passivated
Hardness Rockwell B55
Tensile Strength 70,000 psi
Minimum Shear Strength Not Rated
Head Type Socket
Socket Head Profile Standard
Head Texture Knurled
Drive Style Hex
Drive Size 3/8"
Specifications Met ASME B18.3
System of Measurement Inch
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
