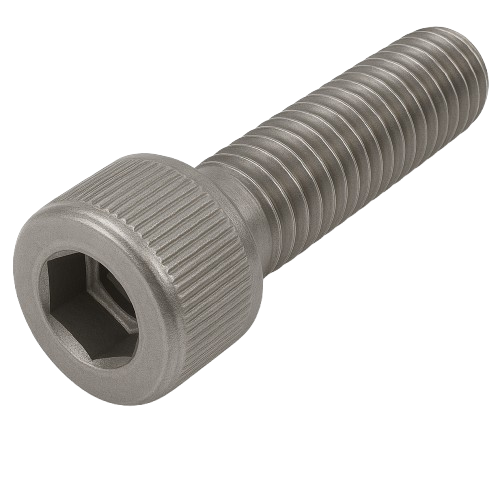

Socket Head Cap Screw Full Thread 316 Stainless Steel 1/4-20 * 1-1/4" [Cup Point] [Allen Drive]

Socket Head Cap Screw Full Thread 316 Stainless Steel 1/4-20 * 1-1/4" [Cup Point] [Allen Drive]

1.25 $ CAD
1.25 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


These screws are corrosion resistant in wet environments, nonmagnetic, and electrically conductive. Length is measured from under the head.

Coarse threads are the industry standard: choose these screws if you don’t know the pitch or threads per inch.

Screws that meet ISO 4762 (formerly DIN 912) comply with specifications for dimensional standards.

View full details

Specifications
Product Number VPSCT3-01012
Head Type Socket
Socket Head Profile Standard
Drive Style Hex
System of Measurement Inch
Thread Direction Right Hand
Thread Size 1/4 "-20
Screw Size Decimal Equivalent 0.25"
Thread Type UNC
Thread Fit Class 3A
Length 1-1/4"
Threading Fully Threaded
Thread Spacing Coarse

Head
Diameter 3/8 "
Height 1/4 "
Drive Size 3/16 "
Material 316 Stainless Steel
Tensile Strength 110, 000 psi
Hardness Rockwell C25
Specifications Met ASME B18.3
Fabrication Cold Worked
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
