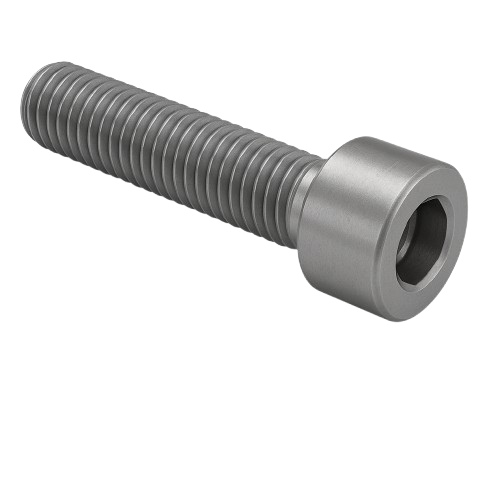

Socket Head Cap Screw Fine & Full Thread Stainless Steel 10-32 * 3/16" [Cup Point] [Allen Drive]

Socket Head Cap Screw Fine & Full Thread Stainless Steel 10-32 * 3/16" [Cup Point] [Allen Drive]

0.31 $ CAD
0.31 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


Made from 304 stainless steel, these screws have good chemical resistance and may be mildly magnetic. Length is measured from under the head. Fine threads are closely spaced to prevent loosening from vibration. They are not compatible with coarse threads.

View full details

Specifications
Product Number VPSCTF-00801A
Head Type Socket
Socket Head Profile Standard
Drive Style Hex
System of Measurement Inch
Thread Direction Right Hand
Thread Size 10-32
Screw Size Decimal Equivalent 0.19"
Thread Type UNF
Thread Fit Class 3A
Length 3/16"
Threading Fully Threaded
Thread Spacing Fine

Head
Diameter 5/16"
Height 0.19"
Drive Size 5/32"
Tensile Strength 70,000 psi
Hardness Rockwell B70
Material 304 Stainless Steel
RoHS Compliant
