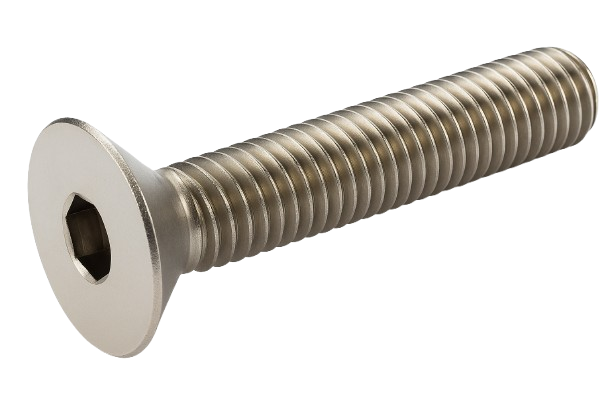

Metric Flat Head Cap Screw A2 Stainless Steel [Equivalent 304 SS] Full Thread M5 * 0.8 * 12mm [Allen Key]

Metric Flat Head Cap Screw A2 Stainless Steel [Equivalent 304 SS] Full Thread M5 * 0.8 * 12mm [Allen Key]

0.18 $ CAD
0.18 $ CAD
Sale Sold out
Shipping calculated at checkout.
Title
Download

This flat head cap screw has a length of 12mm with a threading of M5 * 0.8mm [Fully Threaded]. It is made of A2 Stainless Steel [Equivalent 304 SS] and thus provides a high resistance to corrosion in dry and wet environments.

The cup point and the A2 Stainless Steel [Equivalent 304 SS] increases its strength against the pressure and has a tensile strength and hardness of 70,000 psi | Rockwell B70. Furthermore, it features a shear strenght of 42,000 psi.

ISO Metric Pitch | Coarse threads are an industry standard. These screws are classified as DIN 7991 and comply with dimensional standards.

View full details

Specifications
Product Number VPSFMT-05012
Nominal Diameter M5 * 0.8mm
Length 12mm
Material and/or Plating A2 Stainless Steel [Equivalent 304 SS]
System of Measurement Metric

Thread Specifications
Threading Fully Threaded
Type ISO Metric Pitch | Coarse
Direction Right Hand
Size M5 * 0.8mm
Fit Class 5g6g

Head Specifications
Type Flat
Profile Standard
Diameter 10.00mm
Height 2.80mm
Drive Style Allen Key
Drive Size 3.00mm

Strength Specifications
Tensile Strength | Hardness 70,000 psi | Rockwell B70
Shear Strength 42,000 psi
Classification DIN 7991
