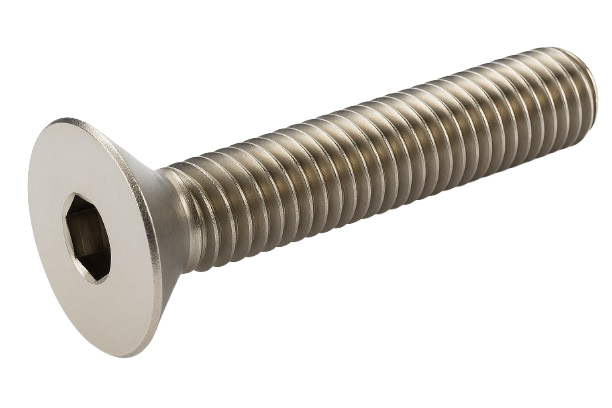

Metric Flat Head Cap Screw A2 Stainless Steel [Equivalent 304 SS] Full Thread M6 * 1 * 30mm [Allen Key]

Metric Flat Head Cap Screw A2 Stainless Steel [Equivalent 304 SS] Full Thread M6 * 1 * 30mm [Allen Key]

0.45 $ CAD
0.45 $ CAD
Sale Sold out
Shipping calculated at checkout.
Title
Download

This flat head cap screw has a length of 30mm with a threading of M6 * 1mm [Fully Threaded]. It is made of A2 Stainless Steel [Equivalent 304 SS] and thus provides a high resistance to corrosion in dry and wet environments.

The cup point and the A2 Stainless Steel [Equivalent 304 SS] increases its strength against the pressure and has a tensile strength and hardness of 70,000 psi | Rockwell B70. Furthermore, it features a shear strenght of 42,000 psi.

ISO Metric Pitch | Coarse threads are an industry standard. These screws are classified as DIN 7991 and comply with dimensional standards.

View full details

Specifications
Product Number VPSFMT-06030
Nominal Diameter M6 * 1mm
Length 30mm
Material and/or Plating A2 Stainless Steel [Equivalent 304 SS]
System of Measurement Metric

Thread Specifications
Threading Fully Threaded
Type ISO Metric Pitch | Coarse
Direction Right Hand
Size M6 * 1mm
Fit Class 5g6g

Head Specifications
Type Flat
Profile Standard
Diameter 12.00mm
Height 3.30mm
Drive Style Allen Key
Drive Size 4.00mm

Strength Specifications
Tensile Strength | Hardness 70,000 psi | Rockwell B70
Shear Strength 42,000 psi
Classification DIN 7991
