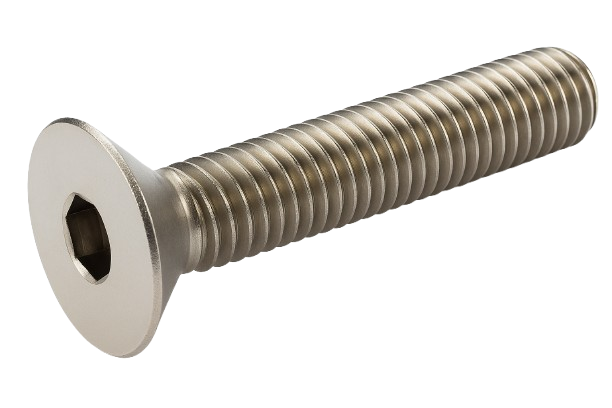

Metric Flat Head Cap Screw A4 Stainless Steel [Equivalent 316 SS] Full Thread M10 * 1.5 * 16mm [Allen Key]

Metric Flat Head Cap Screw A4 Stainless Steel [Equivalent 316 SS] Full Thread M10 * 1.5 * 16mm [Allen Key]

0.21 $ CAD
0.21 $ CAD
Sale Sold out
Shipping calculated at checkout.
Title
Download

This flat head cap screw has a length of 16mm with a threading of M10 * 1.5mm [Fully Threaded]. It is made of A4 Stainless Steel [Equivalent 316 SS] and thus provides a very high resistance to corrosion in dry and wet environments.

The cup point and the A4 Stainless Steel [Equivalent 316 SS] increases its strength against the pressure and has a tensile strength and hardness of 75,000 psi | Rockwell B79. Furthermore, it features a shear strenght of 45,000 psi.

ISO Metric Pitch | Coarse threads are an industry standard. These screws are classified as DIN 7991 and comply with dimensional standards.

View full details

Specifications
Product Number VPSFMT3-10016
Nominal Diameter M10 * 1.5mm
Length 16mm
Material and/or Plating A4 Stainless Steel [Equivalent 316 SS]
System of Measurement Metric

Thread Specifications
Threading Fully Threaded
Type ISO Metric Pitch | Coarse
Direction Right Hand
Size M10 * 1.5mm
Fit Class 5g6g

Head Specifications
Type Flat
Profile Standard
Diameter 20.00mm
Height 5.50mm
Drive Style Allen Key
Drive Size 6.00mm

Strength Specifications
Tensile Strength | Hardness 75,000 psi | Rockwell B79
Shear Strength 45,000 psi
Classification DIN 7991
