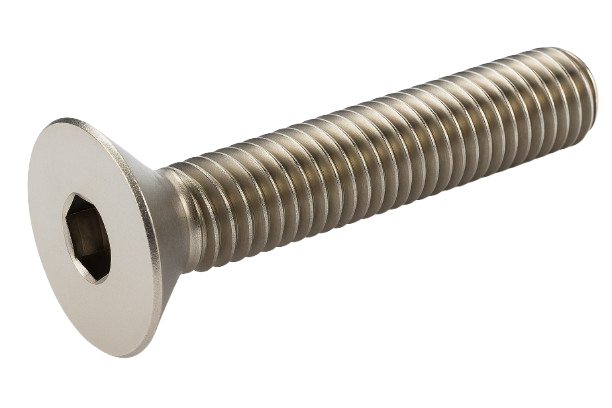

Flat Head Cap Screw Full Thread Stainless Steel 1/2-13 * 3" [Cup Point] [Allen Drive]

Flat Head Cap Screw Full Thread Stainless Steel 1/2-13 * 3" [Cup Point] [Allen Drive]

3.78 $ CAD
3.78 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


These 18-8 stainless steel screws have good chemical resistance and may be mildly magnetic. They’re angled under the head to sit flush within countersunk holes. Length is measured from the top of the head.

Passivated stainless steel screws have added protection against oxidation and corrosion.

View full details

Specifications
Product Number VPSFT-05030
Thread Size 1/2"-13
Length 3"
Threading Fully Threaded
Flat Head Profile Standard
Head Diameter 0.938"
Head Height 0.251"
Countersink Angle 82°
Drive Style Hex
Drive Size 5/16"
Material 18-8 Stainless Steel
Finish Passivated
Hardness Rockwell B55
Tensile Strength 70,000 psi
Screw Size Decimal Equivalent 0.500"
Thread Type UNC
Thread Spacing Coarse
Thread Fit Class 3A
Thread Direction Right Hand
Head Type Flat
System of Measurement Inch
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
