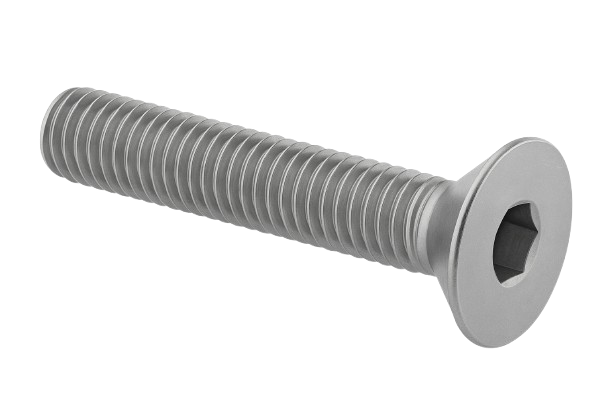

Flat Head Cap Screw Full Thread Stainless Steel 5/8-11 * 1-1/4" [Cup Point] [Allen Drive]

Flat Head Cap Screw Full Thread Stainless Steel 5/8-11 * 1-1/4" [Cup Point] [Allen Drive]

5.70 $ CAD
5.70 $ CAD
Sale Sold out
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


More corrosion resistant than 18-8 stainless steel screws, these screws have excellent resistance to chemicals and salt water. They may be mildly magnetic. They’re angled under the head to sit flush within countersunk holes. Length is measured from the top of the head.

Passivated stainless steel screws have added protection against oxidation and corrosion.

View full details

Specifications
Product Number VPSFT3-07012
Thread Size 5/8"-11
Length 1-1/4"
Threading Fully Threaded
Countersink Angle 82°
Flat Head Profile Standard
Head Diameter 1.188"
Head Height 0.324"
Drive Style Hex
Drive Size 3/8"
Material 316 Stainless Steel
Finish Passivated
Hardness Rockwell B55
Tensile Strength 70,000 psi
Screw Size Decimal Equivalent 0.625"
Thread Type UNC
Thread Spacing Coarse
Thread Fit Class 3A
Thread Direction Right Hand
Head Type Flat
System of Measurement Inch
Specifications Met ASME B18.3
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
