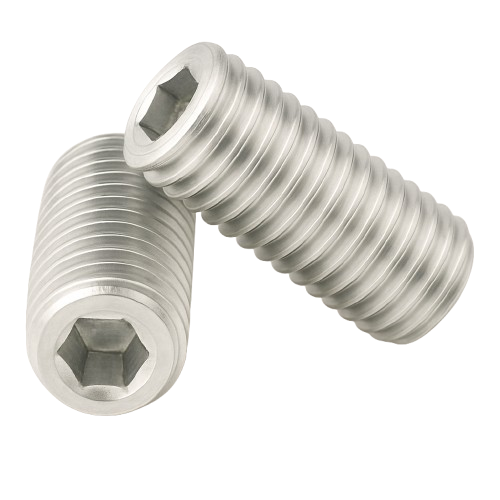

Set Screw Full Thread Stainless Steel 8-32 * 1/2" [Cup Point] [Allen Drive]

Set Screw Full Thread Stainless Steel 8-32 * 1/2" [Cup Point] [Allen Drive]

0.54 $ CAD
0.54 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


Made from 316 stainless steel, these set screws have excellent chemical resistance and can be used in saltwater environments. They have a thin edge that digs into the contact surface for a secure hold. Length listed is overall length.

View full details

Specifications
Product Number VPSR3-00705
Material 316 Stainless Steel
Thread Size 8-32
Length 1/2"
Drive Size 5/64"
Screw Size Decimal Equivalent 0.164"
Hardness Rockwell B80
Specifications Met ASME B18.3
Thread Type UNC
Thread Spacing Coarse
Thread Fit Class 3A
Thread Direction Right Hand
Drive Style Hex
Tip Type Cup point
Head Type Headless
System of Measurement Inch
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
