Hexagonal Head Drilling Screw Zinc #8 * 5/8"

Hexagonal Head Drilling Screw Zinc #8 * 5/8"

0.12 $ CAD
0.12 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS

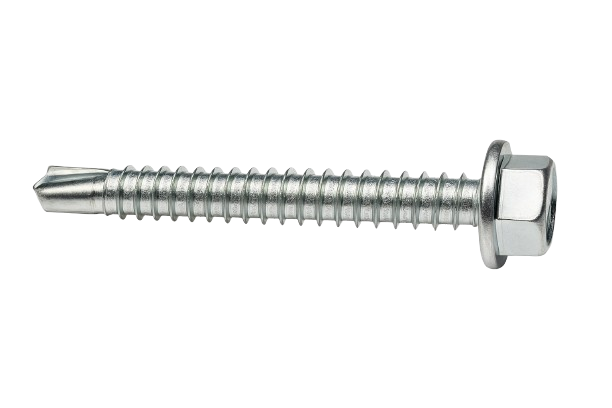

These steel screws have corrosion-resistant finishes. A hex head provides a secure grip with a wrench and a flange reduces the risk of crushing thin metal. They save you time and effort by drilling their own holes and fastening in a single operation. Length is measured from under the flange. Head height includes the flange.

Zinc-plated steel screws resist corrosion in wet environments.

View full details

Specifications
Product Number VTAH-08006
Material Zinc-Plated Steel
Screw Size No. 8
Screw Size Decimal Equivalent 0.164"
Length 5/8"

Drill Tip
Type No. 2
Length 3/16"
Maximum Drilling Thickness 0.098"

Head
Width 0.25"
Height 0.141"
Flange Diameter 0.348"
Drive Style External Hex
Approximate Threads per Inch 18
Thread Direction Right Hand
Threading Fully Threaded
Tapping Method Thread Forming
Tapping Screw Type BSD
Head Type Hex
Hex Head Profile Standard
Tip Type Drilling
Shank Cross Section Round
Screw Features Flanged
System of Measurement Inch
For Use In Steel, Sheet Metal
RoHS RoHS 3 (2015/863/EU) compliant
