Hexagonal Head Drilling Screw Tek 5 Hot Dip Galvanized #14 * 8"

Hexagonal Head Drilling Screw Tek 5 Hot Dip Galvanized #14 * 8"

9.51 $ CAD
9.51 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS

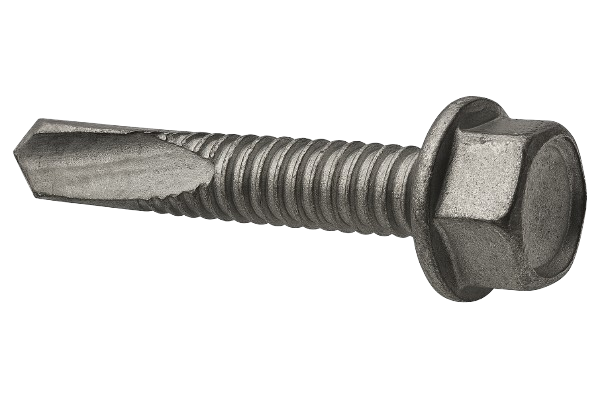

These Hot-Dipped Galvanized Steel screws have corrosion-resistant finishes. A hex head provides a secure grip with a wrench and a flange reduces the risk of crushing thin metal. They save you time and effort by drilling their own holes and fastening in a single operation. Length is measured from under the flange. Head height includes the flange. Unique double fluted point has precise cutting edges to improve drill performance in 1/4 through 1/2 steel.

View full details

Specifications
Product Number VTAH5-14080
Material Hot Dip Galvanized Steel
Screw Size No. 14
Screw Size Decimal Equivalent 0.25"
Length 3"

Drill Tip
Type Tek 5
Length 8"
Maximum Drilling Thickness 0.500"

Head
Width 0.375"
Height 0.255"
Flange Diameter 0.500"
Drive Style External Hex
Thread Size 1/4"-28
Thread Direction Right Hand
Threading Fully Threaded
Thread Type UNF
Thread Spacing Fine
Tapping Method Thread Forming
Head Type Hex
Hex Head Profile Standard
Tip Type Drilling
Shank Cross Section Round
Screw Features Flanged
System of Measurement Inch
For Use In Steel, Sheet Metal
REACH REACH (EC 1907/2006) (07/16/2019, 201 SVHC) Compliant
RoHS RoHS 3 (2015/863/EU) compliant
