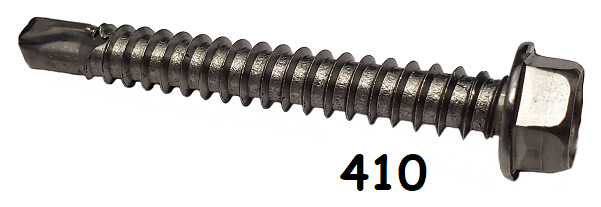

Hexagonal Head Drilling Screw 410 Stainless Steel #8 * 3/4"

Hexagonal Head Drilling Screw 410 Stainless Steel #8 * 3/4"

0.26 $ CAD
0.26 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


410 stainless steel is strong, wear resistant, and mildly chemical resistant. These screws have a hex head for a secure grip with a wrench and a flange to reduce the risk of crushing thin metal. They save you time and effort by drilling their own holes and fastening in a single operation. 410 stainless steel screws are magnetic and not for use with aluminum. Length is measured from under the flange. Head height includes the flange.

View full details

Specifications
Product Number VTAHS-08007
Material 410 Stainless Steel
Screw Size No. 8
Screw Size Decimal Equivalent 0.164"
Length 3/4"

Drill Tip
Type No. 2
Length 3/16"
Maximum Drilling Thickness 0.098"

Head
Width 0.25"
Height 0.141"
Flange Diameter 0.348"
Drive Style External Hex
Approximate Threads per Inch 18
Thread Direction Right Hand
Threading Fully Threaded
Tapping Method Thread Forming
Tapping Screw Type BSD
Head Type Hex
Hex Head Profile Standard
Tip Type Drilling
Shank Cross Section Round
Screw Features Flanged
System of Measurement Inch
For Use In Steel, Stainless Steel, Sheet Metal
RoHS RoHS 3 (2015/863/EU) compliant
