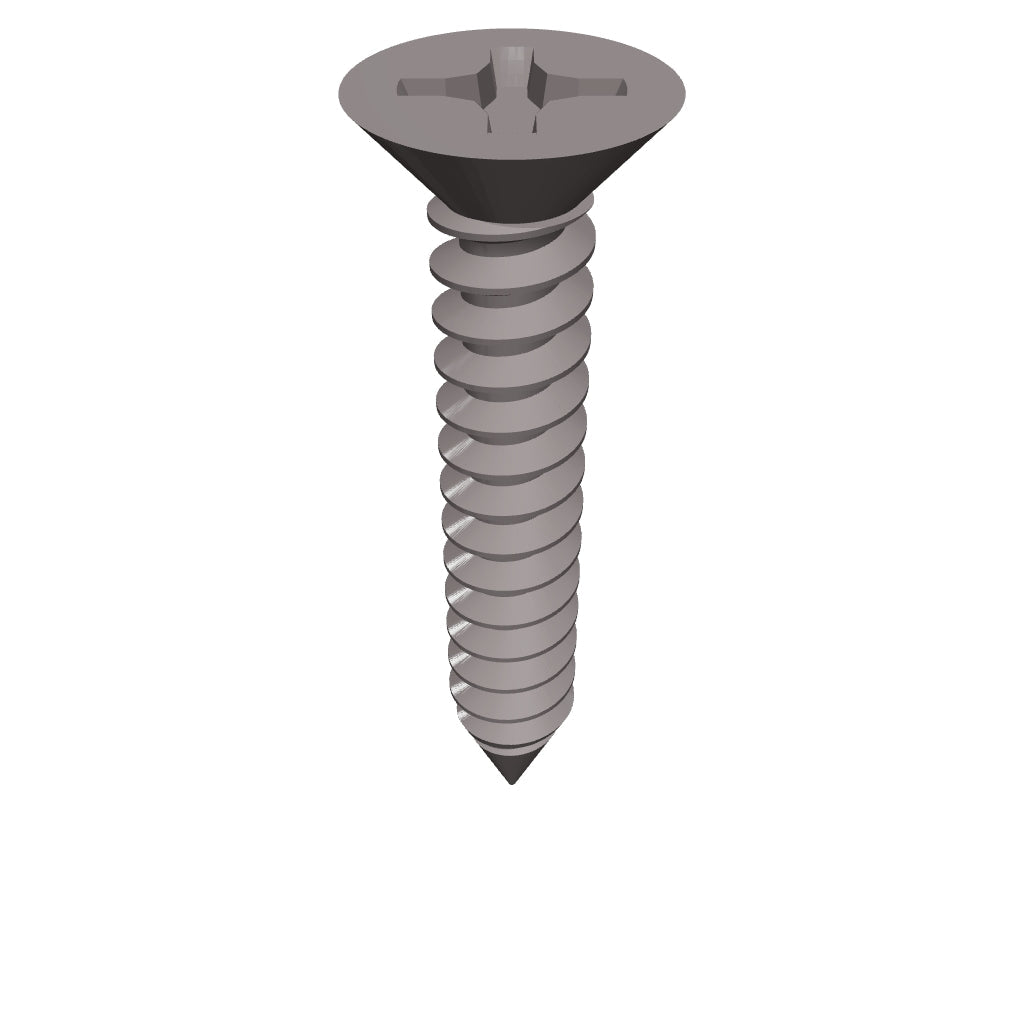

Flat Head Self-Drilling Screw 410 Stainless Steel #6 * 5/8" [Philips Drive]

Flat Head Self-Drilling Screw 410 Stainless Steel #6 * 5/8" [Philips Drive]

0.23 $ CAD
0.23 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


Made from 410 stainless steel, these screws are strong, wear resistant, and mildly chemical resistant. They're beveled under the head for use in countersunk holes. They save you time and effort by drilling their own holes and fastening in a single operation. Not for use with aluminum. Length is measured from the top of the head.

View full details

Specifications
Product Number VTSF-06006
Material 410 Stainless Steel
Screw Size No. 6
Screw Size Decimal Equivalent 0.138"
Length 5/8"
Flat Head Profile Standard

Drill Tip
Type No. 2
Length 9/64"
Maximum Drilling Thickness 0.09"

Head
Diameter 0.262"
Height 0.083"
Drive Size No. 2
Drive Style Phillips
Approximate Threads per Inch 20
Thread Direction Right Hand
Threading Fully Threaded
Tapping Method Thread Forming
Tapping Screw Type BSD
Head Type Flat
Countersink Angle 82°
Tip Type Drilling
Shank Cross Section Round
System of Measurement Inch
For Use In Steel, Stainless Steel, Sheet Metal
RoHS RoHS 3 (2015/863/EU) compliant
