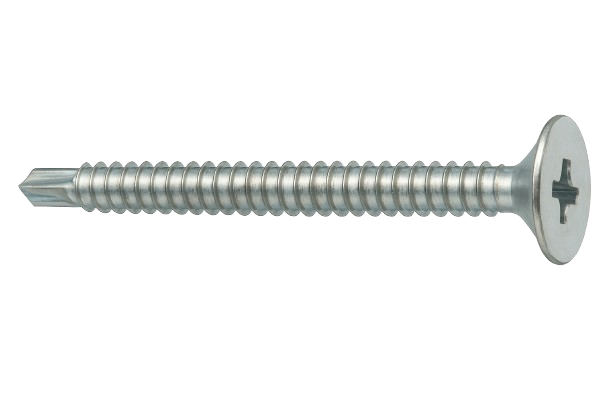

Wafer Flat Head Drilling Screw Zinc #12 * 2-1/2" [Philips Drive]

Wafer Flat Head Drilling Screw Zinc #12 * 2-1/2" [Philips Drive]

0.46 $ CAD
0.46 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


These screws speed installation by drilling, tapping, and fastening wood and metal in a single operation. Length is measured from the top of the head.

View full details

Specifications
Product Number VW-12025
Material Steel
Finish Zinc Plated
Screw Size No. 12
Screw Size Decimal Equivalent 0.216"
Length 2-1/2"
Drill Point Size No. 2
Drill Tip Length 1 3/4"
For Metal Thickness 0.04"-0.15"
For Wood Thickness 0.75"-1.625"

Head
Diameter 0.415"
Height 0.16"
Drive Size No. 3
Drive Style Phillips
Approximate Threads per Inch 14
Thread Direction Right Hand
Threading Fully Threaded
Tapping Method Thread Forming
Head Type Flat
Flat Head Profile Standard
Tip Type Drilling
Shank Cross Section Round
System of Measurement Inch
